Overview

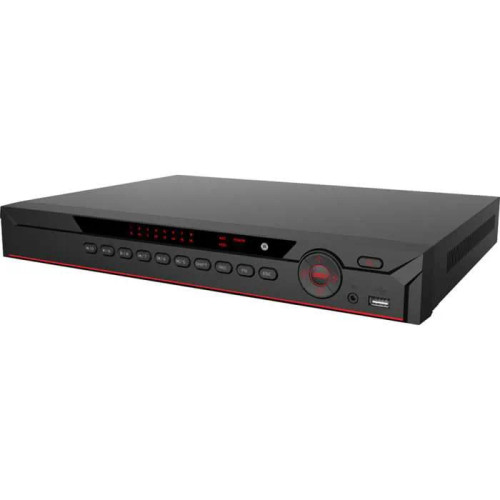

The Diamond NVR304L-16/16P-4KS2 is a professional 16-channel 8MP Lite network video recorder engineered for advanced surveillance needs. Featuring 16 built-in PoE ports, it simplifies installation by directly powering connected IP cameras. With support for up to four SATA ports, it provides flexible storage capacity to meet demanding security requirements. The NVR offers dual independent video outputs via HDMI and VGA for versatile monitoring setups. Enhanced with intelligent VCA features such as face detection, human and vehicle classification, and people counting, it ensures accurate event analysis and proactive security. Additional hardware features include alarm input/output and audio input/output, enabling seamless integration with broader security systems.

Features

• Recording Resolution: Supports up to 8MP Lite recording

• Channels: 16-channel input for IP cameras

• Built-in PoE: 16 independent PoE ports for simplified installation

• Storage: 4x SATA ports for large capacity HDD storage

• Video Outputs: Independent HDMI and VGA outputs for flexible display setups

• VCA (Video Content Analytics):

  • Basic VCA functions

  • Face detection

  • Human/vehicle classification

  • People counting

• Hardware Interfaces:

  • Alarm input/output for system integration

  • Audio input/output for two-way communication

• LAN Connectivity: 1 dedicated LAN port for reliable networking

• H.265/H.264 codec decoding

• Max 200Mbps Incoming Bandwidth

• Up to 8MP Resolution for Preview and Playback

• Up to 2ch@4K/8ch@1080P decoding

• Support IPC UPnP, 16PoE ports

This Diamond Networking Video Recorder(NVR) surveillance products works with : Diamond Networking / Internet Protocol Security Camera (IPC)
