Overview

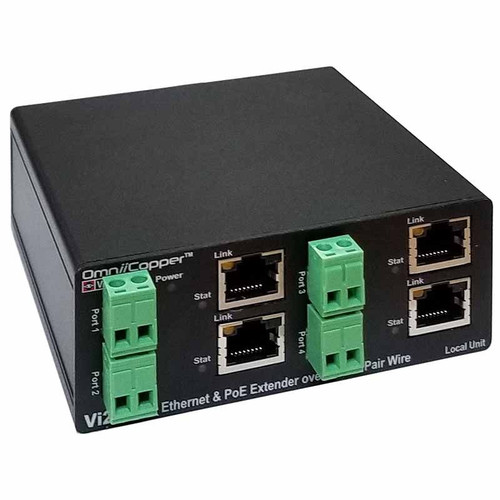

The VI27004 is a high-performance 4-port receiver that delivers data, video, and PoE power over long distances—up to 3,000 feet (914 meters)—using a single twisted pair. Compatible with UTP, STP, and even untwisted pair cables, this receiver supports network speeds up to 100Mbps, making it ideal for extending IP network connectivity in challenging environments. It’s a reliable solution for simplifying infrastructure and reducing cabling costs without compromising performance.

Features

• Long-Range Transmission: Sends data, video, and PoE power up to 3,000 feet (914 m) over single-pair or virtually any 2-conductor wire when used with Vi27000 transmitter.

• 4-Port Receiver: Supports up to four channels of full-bandwidth Ethernet and PoE.

• Flexible Cable Compatibility: Works with UTP, STP, and untwisted pairs; ideal for bundled cable runs in elevators and building systems.

• High-Speed Network: Provides up to 100Mbps network speeds for reliable high-performance connections.

• PoE Pass-Through: Delivers up to 36W per port (IEEE 802.3af/at compliant) without the need for a local power supply.

• Rackmount Ready: Mount up to four units in the Vi5000R tray to build a 4, 8, 12, or 16-port rack solution.

• Rugged & Reliable: Type-tested to NEMA-TS2 standards; operates in temperatures from -30°C to +50°C.

• MegaPixel Certified (MPC™): Assures compatibility with major IP camera brands and reliable performance in demanding applications.

Specifications
