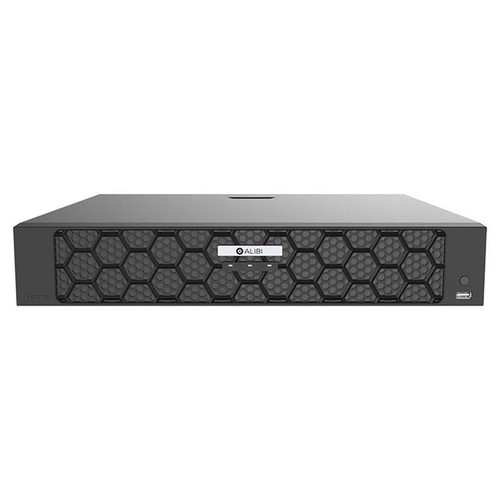

Alibi ALI-NR322P-4-D 32-Channel IntelliSearch Ultra H.265 NDAA Compliant NVR
Brand : Alibi
- SKU:
- ALI-NR322P-4-D
- UPC:
- 3192964152363
- Condition:
- New
- Availability:
- In Stock
Note - This item has free shipping.
Overview
Features
-
High Capacity Channel Support:
Supports up to 32 IP camera channels, ideal for large-scale surveillance deployments. -
Built-in PoE Ports:
Equipped with 16 independent PoE ports, simplifying installation and reducing the need for external power supplies and switches. -
High Bandwidth Performance:
Supports up to 320 Mbps incoming and 160 Mbps outgoing bandwidth, ensuring smooth video streaming and recording of high-resolution (up to 8MP) cameras. -
Storage Scalability:
Includes 4 SATA interfaces, each supporting up to 10TB, for a total capacity of 40TB. (This configuration includes two 8TB HDDs pre-installed.) -
4K Output Support:
HDMI video output supports up to 4K resolution (3840 x 2160), providing ultra-clear live and playback viewing. -
Video Compression:
Compatible with Ultra H.265, H.265, and H.264, enabling efficient storage and reduced bandwidth usage without sacrificing image quality. -
Advanced Smart Search and Playback:
Features IntelliSearch capabilities for fast event detection, as well as Smart Playback for reviewing key footage efficiently. -
Audio and Alarm Integration:
Supports audio input/output and alarm I/O connections for integration with microphones, speakers, sensors, and alarms. -
Remote Access and Management:
Access live view, playback, and system management via Alibi CMS, mobile apps, or web interface. -
Rack Mountable:
Comes with 1.5U rack-mount brackets for convenient installation in server or network cabinets. -
User Management and Security:
Provides multi-level user access controls and encrypted video streams for secure system operation.
This NVR is ideal for commercial and enterprise-level surveillance projects requiring high channel capacity, advanced analytics, and strong system reliability.
What’s included:
- (1) 32-channel input recorder
- (1) USB Mouse
- (1) Power Cable
- (4) HDD SATA Cable
- (2) Rack Mounting Brackets
- (4) Phoenix Terminal
- (1) Ethernet Cable
- (1) HDMI Cable
Specifications
| Audio | Yes |
|---|---|
| Audio Compression | G.711U, G.711A |
| Audio Streaming | Two-way |
| RS-485 | Yes |
| Sensor Inputs | 8 |
| USB | Yes |
| VGA | Yes |
| Alarm Outputs | 2 |
| Audio In | RCA |
| Audio Out | RCA |
| connectors | Front: 1 x USB2.0 , R ear panel: 1 x USB3.0 |
| Inputs | IP Video Input 16-ch |
| Camera Resolution (px) | 3072 × 2048 @ 20fps |
| Product Color | Black |
| Operating Temperature (F) | -10°C~+ 55°C (14°F ~ 131°F) |
| Operating Humidity | 0% ~ 90% |
| Hard Drive Bays | 2 |
| Weight (lb) | 5.7 |
| Certification | CE , FCC , UL , RoHS , WEEE |
| Dimensions | 380mm × 322mm × 53mm (15.0"×12.7"×2.1") |
| Ethernet Ports | 1 |
| Power Supply Included | No |
| Power (w) | 100~240V AC Power Consumption : ≤ 20 W (without HDD) |
| Privacy Video Block | Yes |
| Recording Resolution | Up to 16 Megapixels |
| Search Mode | Vehicle Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Temperature Detection, Smoking Detection, Temperature Measurement, UMD |
| Smart Search | Yes |
| Video Analytics Capable | Yes |
| Multi-Camera Playback | Yes |
| Motion Detection | Yes |
| Analytics Ready | Yes |
| Bit Rate | Incoming 320 Mbps, Outgoing 160 Mbps |
| Channels | 16 |
| Compression Type | Ultra265, H.265, H.264 |
| Active Deterrent | No |
| Brand | Alibi Vigilant |
| Warranty | 3-Year |
