Overview

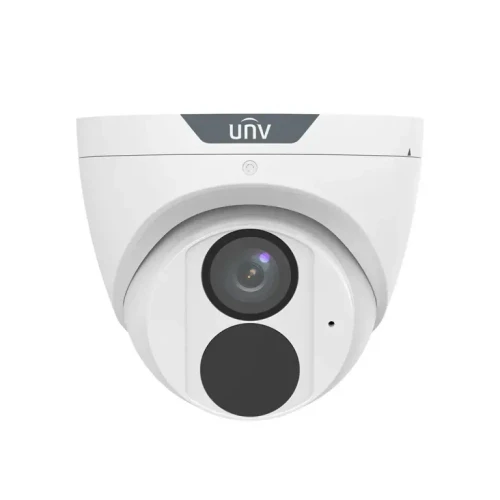

The Uniview IPC3614SR-ADF28KM-H is a 4MP Outdoor Network Turret Camera designed for dependable surveillance in both indoor and outdoor environments. It features a 1/3" CMOS sensor that delivers high-quality video at up to 2688 × 1520 resolution at 30 fps, with a 2.8mm fixed lens providing a wide 97° horizontal field of view. Smart IR technology provides up to 98 ft (30m) of nighttime illumination, while 120 dB WDR, 2D/3D digital noise reduction, and backlight compensation help maintain clear images in challenging lighting conditions. The camera also offers intelligent analytics, built-in audio, MicroSD storage up to 512GB, PoE connectivity, ONVIF compatibility, and a durable IP67-rated metal housing, making it well suited for commercial, residential, and outdoor security applications.

Features

• 4MP high-quality video with 1/3" CMOS sensor

• Resolution up to 2688 × 1520 @ 30 fps

• 2.8mm fixed lens with approximately 97° horizontal field of view

• Smart IR with up to 30m (98 ft) night vision

• Auto and manual IR on/off control

• IR cut filter with automatic day/night switching

• 120 dB Wide Dynamic Range (WDR) for challenging lighting conditions

• 2D-DNR and 3D-DNR for improved image clarity and reduced noise

• Backlight Compensation (BLC) and Highlight Compensation (HLC)

• Supports 9:16 Corridor Mode

• Built-in microphone for audio capture

• MicroSD card support up to 512GB

• Dual streaming for efficient video transmission

• ROI support for up to 8 areas

• Privacy masking for up to 4 areas

• Up to 4 OSD areas

• Intelligent analytics including:Multiple image orientations, including normal, vertical, horizontal, 180°, and 90° rotation
  • Line crossing detection based on human detection
  • Intrusion detection based on human detection
  • Motion detection
  • Tampering alarm
  • Audio detection
• Supports ANR and NAS for enhanced recording and storage options

• PoE support for power and data over a single network cable

• ONVIF Profiles G, S, and T compatibility

• IP67-rated metal housing for outdoor protection

• 4kV surge protection for improved electrical protection

• Compatible with Chrome, Firefox, Edge, UNV-Link, UNV-Link Pro, and EZStation

• Suitable for residential, commercial, retail, industrial, and outdoor surveillance applications
