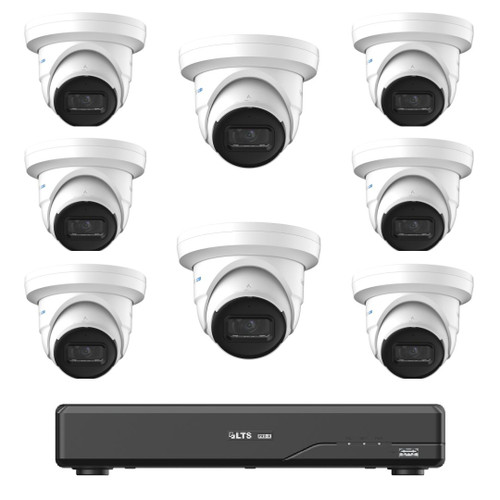

LTS Pro-X LXN16C16P8T 16-Channel 16-Port PoE NVR Kit, 8x 4MP Fixed Network Turret Camera

Features

 LXN8216D-P16 16-Channel 4K PoE NVR

• 16-Channel IP Camera Support: Supports up to 16 IP cameras, with eight cameras included in this kit and eight channels available for expansion.

• 16 Independent PoE Ports: Provides direct camera connections for simplified installation using a single Ethernet cable for power and data.

• High-Resolution Recording: Supports recording resolutions up to 16MP, depending on channel count and configuration.

• 4K HDMI Output: Supports HDMI output up to 3840 × 2160 and VGA output up to 1080p.

• High Network Bandwidth: Supports up to 256Mbps incoming bandwidth, or 180Mbps with AI enabled.

• Advanced Video Compression: Supports Smart H.264, H.265, and H.265+ to help reduce bandwidth consumption and storage requirements.

• Flexible Recording Performance: Supports up to two channels at 16MP, four channels at 4K, or eight channels at 4MP, subject to the recorder's configuration and processing limits.

• MD 2.0 Human and Vehicle Detection: Helps distinguish people and vehicles from other movement to improve event monitoring.

• Dual-Hard-Drive Storage: Includes two SATA interfaces supporting up to 16TB per drive, for a maximum supported capacity of 32TB.

• Gigabit Network Interface: Features one 10/100/1000Mbps RJ45 Ethernet port.

• USB Connectivity: Includes two USB 2.0 ports for compatible peripherals and video export.

• Compact 1U Design: Measures approximately 14.76 × 12.89 × 2.12 inches.

Pro-X LXIP1142W-28MA 4MP Fixed Turret IP Cameras

• 4MP High-Resolution Imaging: Captures detailed video at 2688 × 1520 resolution at 20 fps.

• Starlight Technology: Enhances image quality in low-light environments, with sensitivity down to 0.008 lux under specified conditions.

• 2.8mm Fixed Lens: Provides a wide viewing perspective for entrances, hallways, rooms, and outdoor areas.

• Matrix IR Night Vision: Provides infrared illumination up to 98 feet for nighttime surveillance.

• 120dB True WDR: Balances bright and dark areas to improve clarity in challenging lighting conditions.

• 3D Digital Noise Reduction: Reduces image noise for cleaner surveillance footage.

• Smart H.264/H.265 Compression: Helps optimize bandwidth and video storage requirements.

• Built-in Microphone: Captures audio alongside video, subject to recorder compatibility and configuration.

• MicroSD Card Support: Supports compatible microSD cards up to 256GB for local storage.

• IP67 Weather Protection: Provides protection against dust and water ingress for dependable outdoor installation.

• Flexible Power Options: Supports PoE or 12V DC power.

• Intelligent Video Surveillance: Supports IVS functionality for enhanced event detection, depending on camera and recorder compatibility.

Ideal Applications

This eight-camera security kit is suitable for homes, retail stores, office buildings, warehouses, industrial facilities, schools, and larger commercial properties. The eight 4MP cameras provide detailed monitoring across multiple areas, while the 16-channel PoE NVR centralizes recording and monitoring and allows additional cameras to be added as coverage requirements increase.

System Specifications at a Glance

• System Configuration: Eight 4MP IP turret cameras and one 16-channel NVR

• NVR Model: LXN8216D-P16

• Camera Model: LXIP1142W-28MA

• Camera Resolution: 2688 × 1520 at 20 fps

• Lens: Fixed 2.8mm

• Night Vision: Up to 98 feet

• NVR Recording Capability: Up to 16MP, depending on configuration

• PoE Ports: 16 independent ports

• Video Outputs: HDMI up to 4K and VGA up to 1080p

• Video Compression: Smart H.264, H.265, H.265+

• NVR Storage: Two SATA interfaces, up to 32TB total supported capacity

• Camera Local Storage: MicroSD support up to 256GB per camera

• Camera Weather Rating: IP67

• Expansion Capacity: Eight additional camera channels

Package includes: One Pro-X LXN8216D-P16 16-channel PoE NVR and eight Pro-X LXIP1142W-28MA 4MP fixed turret IP cameras, HDD is optional.
