Overview

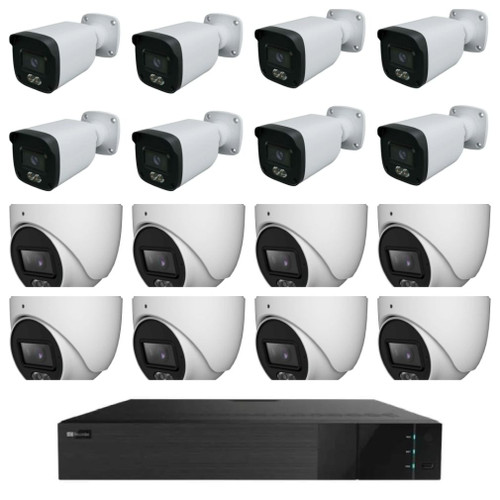

The ED8432H5‑DN is a 32‑channel, 5MP‑capable hybrid DVR supporting TVI/AHD/CVI analog inputs plus up to 8 IP channels, using H.265 compression for efficient storage across 4 SATA bays (up to 40TB). It delivers 1080p output, 16‑channel audio, and simultaneous 16‑channel playback, making it a robust recording backbone for multi‑camera deployments. Paired with 8 HDC‑IR5AS21/36 and 8 HDC‑IRD5AS24‑28 HD‑coax cameras (both typically 5MP‑class IR bullet/dome models), the system provides a balanced mix of fixed‑lens and night‑vision coverage suitable for indoor/outdoor monitoring. This combination supports wide‑area coverage, strong low‑light performance, and flexible installation across commercial sites, retail spaces, warehouses, or large homes.

Features

DVR ED8432H5-DN

• 2 CH DVRs support 8 CH IP video input

• 16CH Analog video input can be switched to 16CH IP video input

• Alarm in/Alarm out: 16CH/4CH

• Adopt standard H.265 high profile compression format to get high-quality video at a much lower bit rate

• Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse

• Search: time slice, time, event, tag, and smart search

• Express and flexible backup via USB, network, and so on

• Pentaplex: preview, record, playback, backup, and remote access

• DHCP, DDNS, PPPoE network protocol

• Remote control via Web Client or CMS: preview, playback, backup, PTZ, and configuration

• Authorization management, log review, and device status review

• 1080P output, true high-resolution display

• Support PTZ preset and auto cruise, up to 255 presets and 8 cruises

• Support NAT function and QR Code scanning by mobile phones

• Powerful mobile surveillance by smartphones with iOS and Android OS

General:

• Power Supply: ATX-250W

• Consumption: ≤ 30W ( without HDD )

• Dimensions (mm): 440 × 390 × 70 ( W × D × H )

• Working Environment: -10~50°C, 10%~90% (humidity)

• Certificate: CE, FCC

• Environmental Protection: Comply with Directive EU RoHS, WEEE, REACH

8 x  HDC-IRD5AS24/28

• 5MP @20fps/4MP real-time image, high resolution, true color

• AHD / TVI / CVI lossless high-definition video output

• Up to 1500 TVL resolution

• CMOS progressive scan, perfectly capturing the moving object

• Support OSD menu

• Support DWDR

• High speed, long-distance and real-time transmission

• The LED can be automatically turned on at low illumination

• 66-98ft 20 ~ 30m LED view distance

• Support COC

• Support coaxial audio transmission(Temporarily only valid in TVI signal mode)

• IP67

8 x HDC-IR5AS21/36

• 5MP@20fps/4MP real time image, high resolution, true color

• AHD / TVI / CVI standard and lossless video output

• Up to 1500 TVL resolution

• CMOS progressive scan, perfectly capturing the moving object

• Support OSD menu

• Support DWDR

• High speed, long distance and real time transmission

• The LED can be automatically turned on at low illumination

• 20 ~ 30m LED view distance

• IP67 ingress protection

• Support COC
