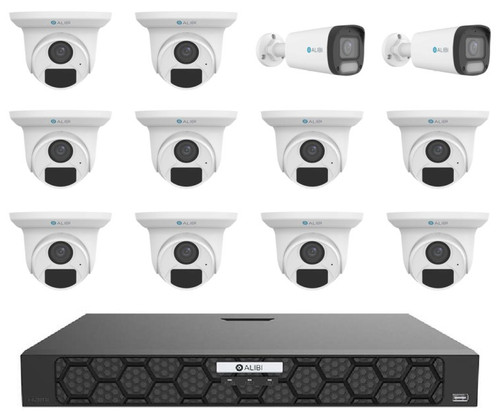

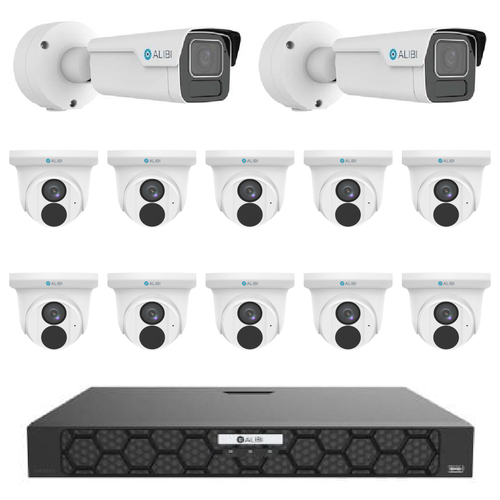

Alibi ALI-KITN16T10B2V 16-Channel 16-POE NVR Kit with 10 x 4MP IP Turret, 2 x 4MP Starlight SmartSense IntelliSearch IP Varifocal Bullet Camera (NDAA Compliant)
Brand : Alibi
- SKU:
- ALI-KITN16T10B2V
- UPC:
- 3192964172316
- Condition:
- New
- Availability:
- In Stock
Note - This item has free shipping. We can customize kit according to your needs. Please email us the details.
Overview
Features
NVR - ALI-NR162F-2-D
-
Channels: 16 IP camera inputs
-
PoE Ports: 16 independent PoE+ ports (simplifies installation and power delivery)
-
Bandwidth:
– 320 Mbps Incoming bandwidth
– 160 Mbps Outgoing bandwidth -
Video Output:
– HDMI and VGA simultaneous output
– Up to 4K (3840×2160) display output -
Recording Resolution: Supports up to 12MP resolution recording
-
Compression: Supports H.265+, H.265, H.264+, H.264
-
Hard Drive Bays: 2 × SATA interfaces, up to 10TB each (total 20TB max)
-
Remote Access:
– Web browser interface
– Alibi CMS and mobile app support -
Alarm Integration: 4 alarm inputs and 1 alarm output
-
Audio Support: 1 audio input, 1 audio output
-
USB Ports: 2 × USB 2.0, 1 × USB 3.0
-
Form Factor: 1U rack-mountable (brackets included)
-
Network Protocols: ONVIF compliant, supports remote viewing and third-party camera integration
-
Smart Features: Motion detection, event push, email alerts, and scheduled recording
-
NDAA Compliant: Yes
Camera - ALI-FT40-A-D
-
Resolution: 4MP (2560 × 1440) for crisp and detailed video
-
Lens: 2.8mm fixed lens for a wide-angle field of view
-
Infrared Night Vision: Up to 98 ft (30m) IR range for clear visibility in complete darkness
-
Image Enhancement: Digital Wide Dynamic Range (DWDR) for better contrast in challenging lighting
-
Compression: Ultra H.265 for efficient bandwidth and storage usage
-
Audio: Built-in microphone for capturing audio along with video
-
Edge Storage: SD card slot for onboard video recording (capacity varies)
-
Form Factor: Turret design for discreet and flexible indoor/outdoor installation
-
Weatherproof Rating: IP67-rated housing for durability in harsh environments
-
Power: PoE (Power over Ethernet) for simplified installation
Camera - ALI-PB41-UZAI
- 4MP IP Bullet camera
- 2.8 – 12mm automatic focusing and motorized zoom lens
- 131 feet Smart IR Distance
- 3 degrees – 35.2 degrees Field of View
- 120dB True WDR
- Built-in mic
- MicroSD card slot – up to 256GB
- Supports Ultra 265, H.265, H.264, MJPEG
- IP67 rating – withstands temps from -22 degrees to +140 degrees Fahrenheit
Specifications
| Audio | Yes |
|---|---|
| Audio Compression | G.711U, G.711A |
| Audio Streaming | Two-way |
| RS-485 | Yes |
| Sensor Inputs | 8 |
| USB | Yes |
| VGA | Yes |
| Alarm Outputs | 2 |
| Audio In | RCA |
| Audio Out | RCA |
| connectors | Front: 1 x USB2.0 , R ear panel: 1 x USB3.0 |
| Inputs | IP Video Input 16-ch |
| Camera Resolution (px) | 3072 × 2048 @ 20fps |
| Product Color | Black |
| Operating Temperature (F) | -10°C~+ 55°C (14°F ~ 131°F) |
| Operating Humidity | 0% ~ 90% |
| Hard Drive Bays | 2 |
| Weight (lb) | 5.7 |
| Certification | CE , FCC , UL , RoHS , WEEE |
| Dimensions | 380mm × 322mm × 53mm (15.0"×12.7"×2.1") |
| Ethernet Ports | 1 |
| Power Supply Included | No |
| Power (w) | 100~240V AC Power Consumption : ≤ 20 W (without HDD) |
| Privacy Video Block | Yes |
| Recording Resolution | Up to 16 Megapixels |
| Search Mode | Vehicle Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Temperature Detection, Smoking Detection, Temperature Measurement, UMD |
| Smart Search | Yes |
| Video Analytics Capable | Yes |
| Multi-Camera Playback | Yes |
| Motion Detection | Yes |
| Analytics Ready | Yes |
| Bit Rate | Incoming 320 Mbps, Outgoing 160 Mbps |
| Channels | 16 |
| Compression Type | Ultra265, H.265, H.264 |
| Max Storage (TB) | Supports up to 32TB (2 x 16TB HDD) |
| Active Deterrent | No |
| Brand | Alibi Vigilant |
| Warranty | 3-Year |
