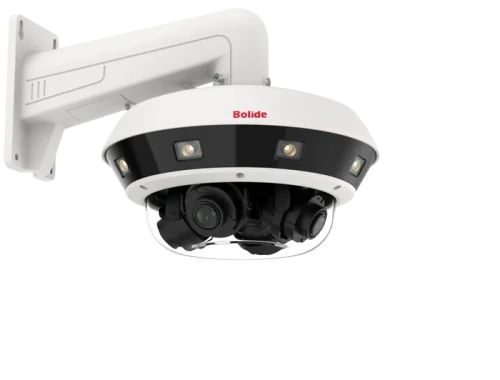

Bolide BN9108R/NDAA 4K NDAA Compliant Multi-Sensor Camera with 4 Adjustable Lenses, 360° Coverage, Starlight, WDR, IR & Warm Light
Brand : Bolide
Call or email for price
- SKU:
- BN9108R/NDAA
- UPC:
- 3653164152145
- Condition:
- New
- Availability:
- In Stock
Note - This item has free shipping.
Overview
The Bolide BN9108R/NDAA 4K Multi-Sensor Camera combines four adjustable camera lenses in a single housing to provide expansive surveillance coverage of up to 360°. Each sensor can deliver up to 8MP (3840 × 2160) resolution at 25/30 FPS, with four independent video streams for flexible monitoring. Advanced Starlight technology, 120dB WDR, and dual-source illumination with IR and warm light help maintain clear video in challenging lighting conditions. Built for demanding outdoor environments, the camera features IP67 weather resistance and IK10 vandal resistance for reliable protection against water, dust, and impact.
Features
- 4K Ultra-HD Resolution: Each sensor supports up to 8MP (3840 × 2160) at 25/30 FPS for detailed video surveillance.
- Four Adjustable Lenses: Four independently adjustable sensors provide flexible camera positioning from a single housing.
- Up to 360° Field of View: Designed to provide expansive area coverage while reducing blind spots.
- 4-Channel Video Output: Supports four independent video streams for flexible viewing and recording.
- 4-Channel Starlight: Enhances low-light performance across all four sensors for improved nighttime image quality.
- 120dB WDR: Helps balance bright and dark areas in challenging lighting conditions.
- Dual-Source Illumination: Built-in IR and warm-light illumination provides enhanced visibility in low-light and nighttime environments.
- NDAA Compliant: Suitable for surveillance deployments requiring NDAA-compliant equipment.
- IP67 Rated: Provides protection against dust and water ingress for dependable outdoor operation.
- IK10 Vandal Resistant: Durable housing helps protect the camera against impact and vandalism.
- Outdoor-Ready Design: Built for reliable surveillance in demanding commercial and outdoor environments.
Specifications
| Mechanical Specifications | |
|---|---|
| Image Sensor | 1/1.8" Progressive CMOS (EA) |
| Max Resolution | 8MP 3840 (H) × 2160 ( EA ) |
| Min. Illumination | Color 0.006Lux @ F1.2 ( AGC ON ); B/W 0.002 lux @ ( F1.2, AGC ON ); 0 Lux with IR On / White Light On |
| Shutter Time | 1/5s – 1/20,000 s |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Four Flexible Lens in One Track, Slide range: -60° to 60°, Tilt: 0° to 90°, Rotate: 0° to 355° |
| Lens | 2.8 ~ 12mm, Varifocal Motorized Lens |
| Field of View | Horizontal FOV: 48° to 112° Vertical FOV: 27° to 58° Diagonal FOV: 55° to 138° |
| Lens Mount | 16.7 |
| Aperture | Max. F1.30 |
| Illuminator | |
| Supplement Light Type | IR and Warm Light |
| Supplement Light Range | Up to 98Ft (IR) / 49Ft ( Warmlight ) |
| IR Wavelength | 850nm |
| Smart Supplement Light | Yes |
| Video | |
| Resolution | Main Stream: 50/60Hz: 25FPS 8MP (3840x2160) 5MP (2592x1944, 3072x1728) 4MP (2592x1520) 3MP (2304x1296) 1080P(1920x1080) 960P (1280x960) 720P(1280x720) Sub Stream: 50/60Hz: 25FPS 720P(1280x720) VGA (640x480), QVGA (320x240) |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Video Bit Rate | 8Kbps to 16Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Region of Interest (ROI) | Yes |
